1-Day Analysis: CVE-2024-38477 — NULL Pointer Dereference in Apache mod_proxy

Executive Summary#

CVE-2024-38477 is a NULL pointer dereference in Apache HTTP Server’s mod_proxy module, affecting versions 2.4.0 through 2.4.59. The vulnerability resides in ap_proxy_determine_connection(): under specific edge cases, apr_uri_parse() can return APR_SUCCESS but leave uri->hostname as NULL. The function then dereferences that pointer without validation, crashing the worker process.

The fix shipped in 2.4.60 (2024-07-01) — a single null-check. The patch is unambiguous. What is less straightforward is what input actually triggers the vulnerable state in a real deployment.

Despite confirming the crash path via GDB and validating that a NULL hostname reliably produces a SIGSEGV, controlled exploitation through accessible input vectors — CVE-2024-38476 chaining, ProxyPass manipulation, and fuzzing — was not achieved within the available research window. The precise conditions under which apr_uri_parse() returns success but leaves hostname NULL remain undetermined for standard request paths.

The investigation did not end there. While probing the HTTP/2 proxy backend path in search of an alternative trigger, an unrelated but immediately reproducible crash was observed in h2_proxy_util.c. That crash became a separate thread of research, ultimately leading to a new CVE — documented in CVE-2025-49630: Reachable Assertion in Apache mod_proxy_http2.

Who should care: operators running Apache HTTP Server with mod_proxy enabled. Upgrade to 2.4.60 or later. The underlying concern about apr_uri_parse() output validation extends beyond this single CVE.

Context & Threat Model#

Apache mod_proxy Architecture#

mod_proxy is Apache’s reverse proxy framework. It receives an inbound HTTP request, determines the upstream backend to contact, and delegates the connection to a sub-handler (mod_proxy_http, mod_proxy_http2, mod_proxy_fcgi, etc.) based on the target URL scheme.

[Client]
    |
    | HTTP request
    v
[Apache httpd — mod_proxy]
    |
    | URL scheme dispatch
    +——> mod_proxy_http   (http://, https://)
    +——> mod_proxy_http2  (h2://, h2c://)
    +——> mod_proxy_fcgi   (fcgi://)
    |
    v
ap_proxy_determine_connection()
    |
    | apr_uri_parse(url, &uri)
    v
[uri.hostname] ——> NULL? ——> SIGSEGV  (CVE-2024-38477)

The central function ap_proxy_determine_connection() in proxy_util.c is responsible for parsing the upstream URL and populating the connection parameters (hostname, port, path). It is called regardless of which sub-handler is active.

Attack Surface#

CVE-2024-38477 is reachable through the HTTP request path with no authentication required, provided mod_proxy is loaded and a matching ProxyPass or ProxyPassMatch directive is configured. The attack surface is the inbound request line and headers on any proxied path.

A minimal vulnerable configuration:

LoadModule proxy_module      modules/mod_proxy.so
LoadModule proxy_http_module modules/mod_proxy_http.so

ProxyPass        "/app" "http://backend:8080/"
ProxyPassReverse "/app" "http://backend:8080/"

Trust Boundary#

The relevant boundary is between the raw TCP stream from an untrusted client and the internal request routing logic in mod_proxy. The vulnerability does not require any application-level session, cookie, or credential. Processing occurs during the pre-authentication phase of request handling.

Research Methodology#

Starting Point: Patch Diffing#

The standard entry point for 1-day analysis is comparing the patched and vulnerable versions to identify what changed. The fix for CVE-2024-38477 was shipped in Apache HTTP Server 2.4.60 (released 2024-07-01). Comparing the relevant source file between tags 2.4.59 and 2.4.60 immediately surfaces the change:

https://github.com/apache/httpd/blob/2.4.59/modules/proxy/proxy_util.c#L3076
https://github.com/apache/httpd/blob/2.4.60/modules/proxy/proxy_util.c#L1317

The patch inserts a single null-check on uri->hostname immediately after the apr_uri_parse() call. The commit message is direct: a missing hostname should be treated as a bad request, not silently passed to downstream code that assumes it is non-null.

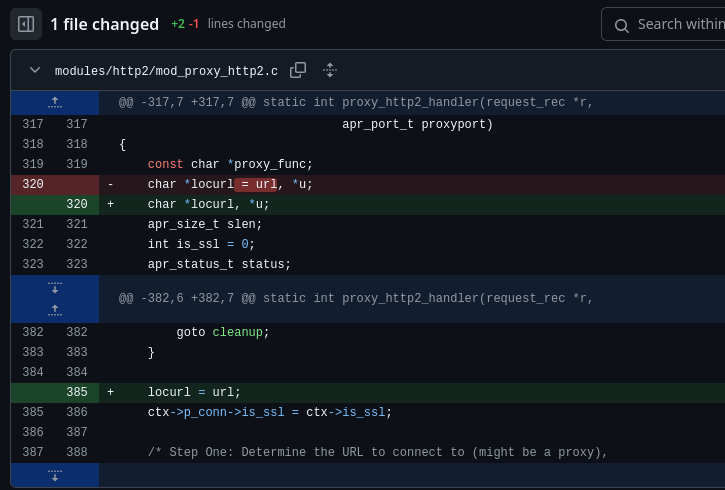

A secondary commit addresses a regression introduced by the fix in the HTTP/2 proxy sub-handler (mod_proxy_http2.c):

Lab Setup#

To enable breakpoint-level debugging, Apache 2.4.59 was compiled from source with full debug symbols and all proxy modules enabled:

# APR must be compiled first with matching flags
wget http://archive.apache.org/dist/apr/apr-1.7.3.tar.gz
tar -xzf apr-1.7.3.tar.gz && cd apr-1.7.3
./configure --prefix=/usr/local/apr && make && sudo make install

# Build httpd 2.4.59 with debug and proxy modules
wget https://archive.apache.org/dist/httpd/httpd-2.4.59.tar.gz
tar -xzf httpd-2.4.59.tar.gz && cd httpd-2.4.59
./configure --prefix=/usr/local/apache2 \
    --enable-debug --enable-debugger-mode \
    --enable-mods-shared=all \
    --enable-proxy-connect --enable-proxy-http \
    --enable-proxy-http2 --enable-http2
make && sudo make install

The httpd.conf used for CVE-2024-38477 testing:

LoadModule proxy_module          modules/mod_proxy.so
LoadModule proxy_http_module     modules/mod_proxy_http.so
LoadModule proxy_http2_module    modules/mod_proxy_http2.so

Listen 8080

ProxyPass        "/test" "http://proxified:8081/redirect"
ProxyPassReverse "/test" "http://proxified:8081/redirect"

ErrorLog  "logs/error_log"
LogLevel  debug

Hypothesis and Dead Ends#

The vulnerability requires apr_uri_parse() to produce a NULL hostname. Testing this required finding an input that reaches ap_proxy_determine_connection() with a URL that the parser leaves with an unset hostname field.

Several vectors were evaluated:

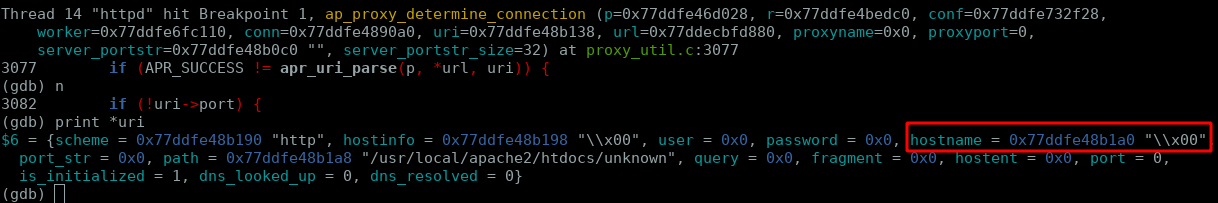

CVE-2024-38476 chaining — A CGI script was deployed to reflect user-controlled values via Location headers into the proxy: scheme handler. Multiple attempts to inject a null byte (%00) or omit the hostname component were unsuccessful:

# Null byte injection attempt
curl -v 'http://127.0.0.1:8080/cgi-bin/test.pl?r=http://%0d%0aLocation:/u%0d%0aContent-Type:proxy:http:%2F%2F\x00%0d%0a%0d%0a'

# Empty hostname attempt
curl -v 'http://127.0.0.1:8080/cgi-bin/test.pl?r=http://%0d%0aLocation:/u%0d%0aContent-Type:proxy:http://%3F%0d%0a%0d%0a'

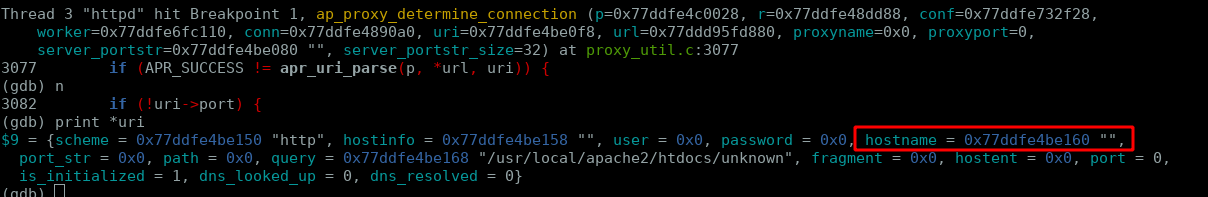

In all cases, the hostname was empty at best — never NULL. The distinction matters: an empty string still passes the null pointer check that causes the crash.

ProxyPass / ProxyRequests manipulation — Toggling ProxyPreserveHost, disabling MergeSlashes, enabling AllowEncodedSlashes, and switching between ProxyPass and ProxyPassMatch produced no exploitable condition. Malformed URIs were caught by protocol.c or vhost.c before reaching the proxy layer.

Fuzzing — A BooFuzz session mutating the request URI, Host header, and proxy target URL generated no NULL hostname condition.

The conclusion: the specific conditions under which apr_uri_parse() leaves hostname NULL are tightly coupled to internal URL routing logic not accessible through standard request vectors in a typical ProxyPass configuration.

An Unexpected Turn#

At this point, the obvious move was to switch the backend scheme from http:// to h2c:// and repeat the same tests against the HTTP/2 proxy path. If the normalisation logic differed between mod_proxy_http and mod_proxy_http2, a different parsing edge case might surface.

It did produce a different result — just not the one being looked for.

A specific malformed request sent while exploring h2c:// backend behaviour caused a completely different crash, with a completely different log signature: an assertion failure in h2_proxy_util.c, at a line that had nothing to do with hostname parsing. The first instinct was that the test environment was misconfigured. After checking, it was not.

That observation became a separate research thread. The crash was deterministic, independently reproducible, and affected every Apache version with HTTP/2 proxy support. The full analysis is documented in:

CVE-2025-49630: Reachable Assertion in Apache mod_proxy_http2 A CRLF sequence in the request URI causes ap_assert(req->authority) to fire, crashing all httpd workers on servers proxying to h2:// or h2c:// backends.

The rest of this article focuses on CVE-2024-38477.

Root Cause Analysis#

CVE-2024-38477 — NULL hostname in ap_proxy_determine_connection()#

The vulnerable function in modules/proxy/proxy_util.c at tag 2.4.59:

int ap_proxy_determine_connection(apr_pool_t *p, request_rec *r,
                                  proxy_server_conf *conf,
                                  proxy_worker *worker,
                                  proxy_conn_rec *conn,
                                  apr_uri_t *uri,
                                  char **url, ...)
{
    /* Parse the upstream URL into uri components */
    if (APR_SUCCESS != apr_uri_parse(p, *url, uri)) {
        return ap_proxyerror(r, HTTP_BAD_REQUEST,
                             apr_pstrcat(p, "URI cannot be parsed: ", *url, NULL));
    }

    if (!uri->port) {
        uri->port = ap_proxy_port_of_scheme(uri->scheme);
    }

    /* ← uri->hostname used here with no null check */
    ap_log_rerror(APLOG_MARK, APLOG_DEBUG, 0, r, APLOGNO(00944)
                 "connecting %s to %s:%d", *url, uri->hostname, uri->port);
    /* ...
     * uri->hostname is subsequently passed to ap_strchr_c(), which calls
     * strchr() — dereferencing a NULL pointer → SIGSEGV
     */

The apr_uri_parse() return value is checked: if parsing fails outright, the function returns an error. However, a parse that succeeds (returns APR_SUCCESS) can still leave individual uri fields — including hostname — as NULL when the input URL is incomplete or malformed in a specific way. The success return code only indicates that the parser did not encounter a fatal format error, not that all fields were populated.

The apr_uri_t structure:

typedef struct {
    char *scheme;
    char *hostinfo;
    char *user;
    char *password;
    char *hostname;   /* ← can be NULL after a "successful" parse */
    char *port_str;
    char *path;
    char *query;
    char *fragment;
    /* ... */
} apr_uri_t;

A GDB trace of a valid request confirms the structure is fully populated under normal conditions:

(gdb) break ap_proxy_determine_connection
(gdb) continue
Breakpoint 1, ap_proxy_determine_connection(...) at proxy_util.c:3077

(gdb) next  /* after apr_uri_parse */
(gdb) print *uri
$42 = {scheme = "h2c", hostinfo = "proxified:8081",
       hostname = "proxified", port_str = "8081",
       path = "/redirect/a", query = 0x0, ...}

(gdb) print uri->hostname
$48 = 0x79f848f53838 "proxified"   /* non-NULL, valid */

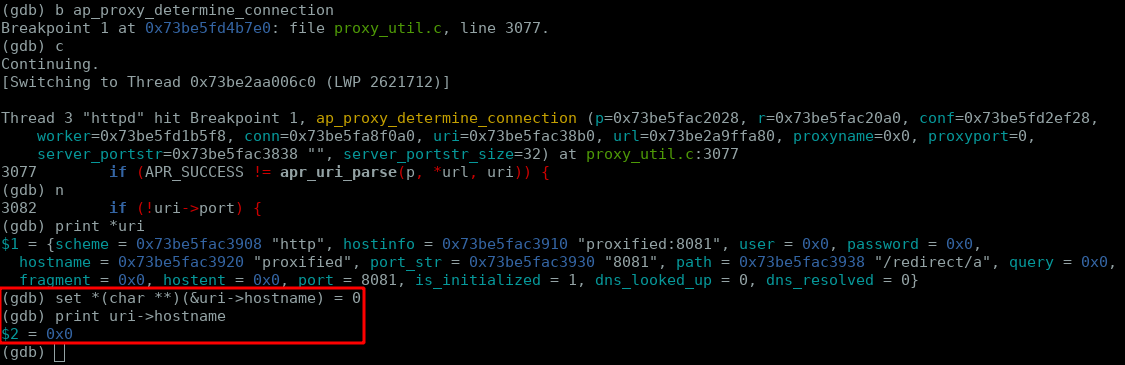

Forcing the hostname to NULL via GDB to simulate the vulnerable state confirms the crash path:

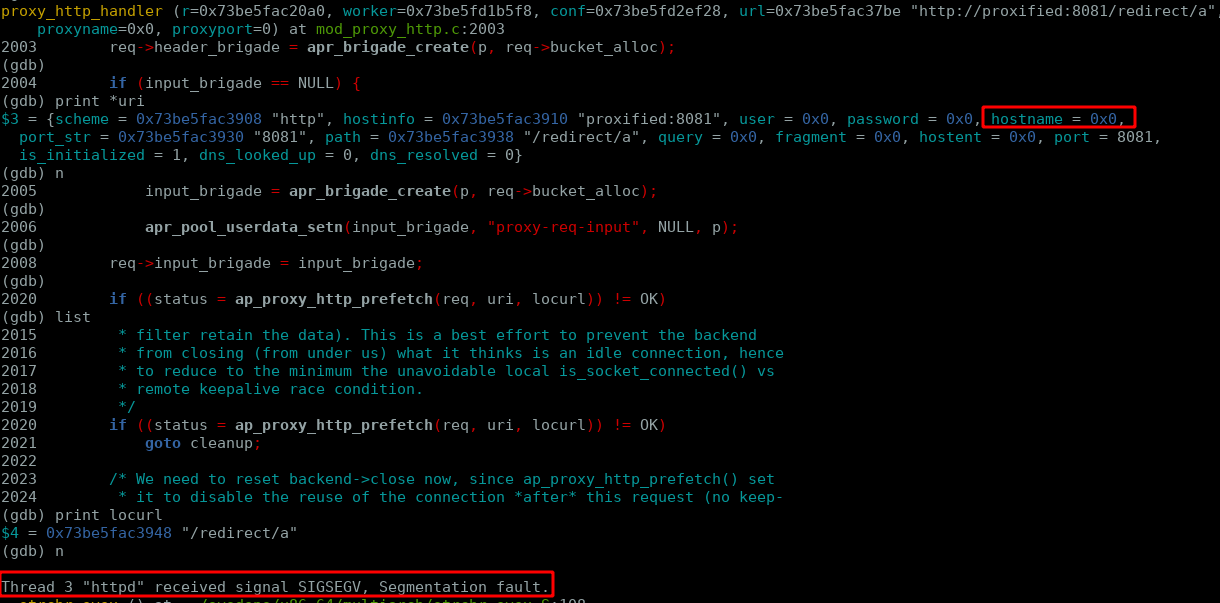

Once the NULL hostname propagates to proxy_http_handler, the segmentation fault follows immediately:

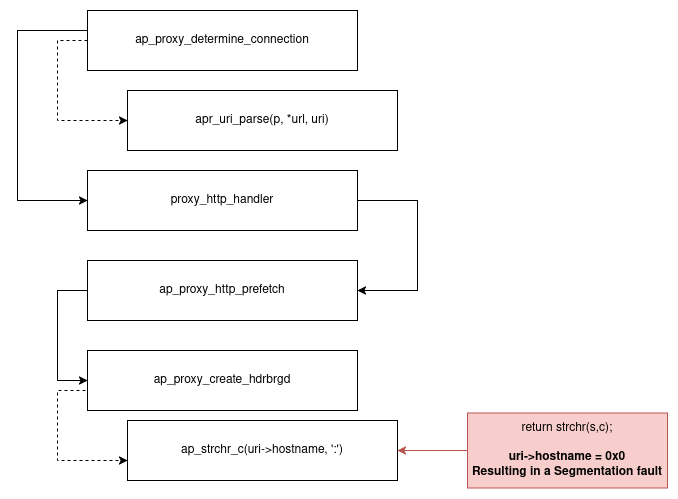

The following diagram traces which functions in the request lifecycle consume uri->hostname, showing the full crash path from the proxy handler to the fault:

The Fix#

Commit 1d98d4db186e708f059336fb9342d0adb6925e85 inserts a null-check between the apr_uri_parse() call and all subsequent uses of uri->hostname:

+    if (!uri->hostname) {
+        return ap_proxyerror(r, HTTP_BAD_REQUEST,
+                             apr_pstrcat(p, "URI has no hostname: ", *url, NULL));
+    }
+
     ap_log_rerror(APLOG_MARK, APLOG_DEBUG, 0, r, APLOGNO(00944)
                  "connecting %s to %s:%d", *url, uri->hostname, uri->port);

A secondary regression fix (4d3a308014be26e5407113b4c827a1ea2882bf38) was needed in mod_proxy_http2.c because the new error return path exposed an unhandled case in the HTTP/2 sub-handler.

The underlying root cause — apr_uri_parse() returning success while leaving hostname NULL — was not addressed in APR itself. The fix is purely defensive: validate at the consumer, not the producer.

Proof of Concept#

Direct triggering via external input was not achieved. The crash path was validated by attaching GDB to a running worker, setting a breakpoint at ap_proxy_determine_connection(), and manually setting uri->hostname to NULL:

(gdb) attach <worker_pid>
(gdb) break ap_proxy_determine_connection
(gdb) continue
# send any normal proxied request to hit the breakpoint
(gdb) set *(char **)(&uri->hostname) = 0
(gdb) continue
# → Segmentation fault (SIGSEGV)

This confirms the crash mechanism. The missing piece is identifying the input that produces a NULL hostname without debugger intervention.

Exploitability Analysis#

The gap between “confirmed crash via GDB” and “triggerable via external request” is significant. The precise input that causes apr_uri_parse() to succeed but leave hostname NULL is tied to internal URL normalisation and routing logic that varies by configuration. Without a reliable trigger, real-world exploitation risk is contingent on undiscovered request routing edge cases.

Detection & Mitigation#

Upgrade to Apache HTTP Server ≥ 2.4.60. The null-check patch is a one-line addition with no behavioural change for valid requests. There is no configuration workaround that addresses the root cause.

Monitoring: watch for SIGSEGV entries in error_log correlated with proxy requests. The pattern is the same as CVE-2021-26690 — worker crash signals from the parent:

[core:notice] AH00051: child pid <N> exit signal Segmentation fault (11)

The underlying issue in how apr_uri_parse() handles malformed URIs has not been fixed in APR itself. A library-level fix that ensures hostname is always populated or an explicit error is returned would address this class of vulnerability at the source.

Responsible Disclosure Timeline#

Key Takeaways#

• A successful parse is not a complete parse. apr_uri_parse() returns APR_SUCCESS even when it leaves fields like hostname NULL. Callers must validate individual fields, not just the return code.

• GDB crash validation is not exploitation. Forcing a NULL pointer in a debugger confirms the crash mechanism but says nothing about reachability from external input. The gap between these two states is where most 1-day analysis ends.

• Failed research produces real value. The inability to trigger CVE-2024-38477 directly forced broader exploration of mod_proxy’s HTTP/2 path. That exploration surfaced CVE-2025-49630 — a simpler and immediately exploitable DoS in the same subsystem.

• Two CVEs, one codebase, same impact. CVE-2021-26690 (mod_session) and CVE-2024-38477 (mod_proxy) both result in unauthenticated remote DoS against Apache workers. The common thread: missing validation on a pointer that a prior function was trusted to populate.
